The O-Metal designed a Miller effect functional coating solution by applying our proprietary metal precursor synthesis and coating technology
Excellent particle size uniformity and visible light gloss
High NIR blocking ability (cut off 800 ~ 2500nm) and strong durability
Excellent reducibility with low temperature pixel system applied (ex. Chamber temp 130°C, about 1 minute, Barcoat No. 4, 25um PET substrate)

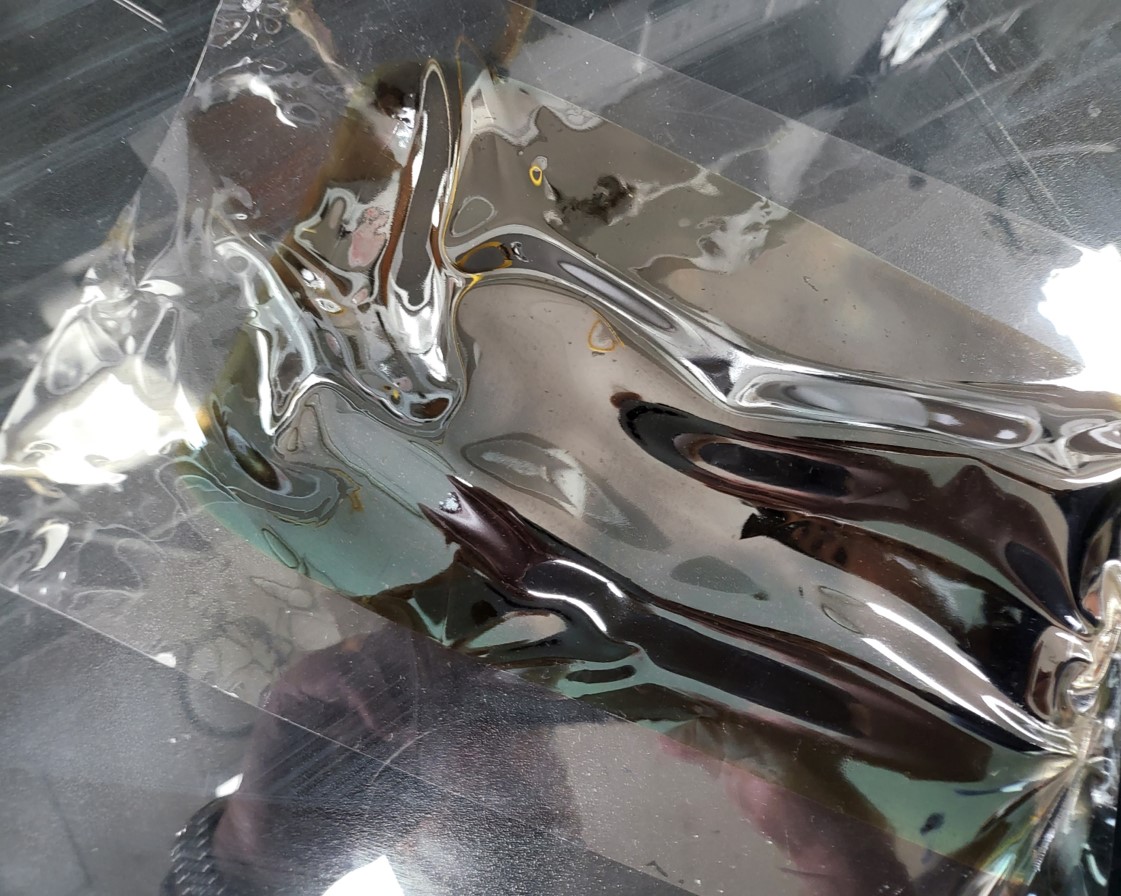

O-Metal may have the appearance of a metal sputtered film. (ex. interior decoration film etc)


  • Contains metal ions in a transparent liquid.

    O-Metal are metal coating solutions that combine metal ions and the reducing system, the technology of The Co-M.

  •   No change after 1000 hours of QUV

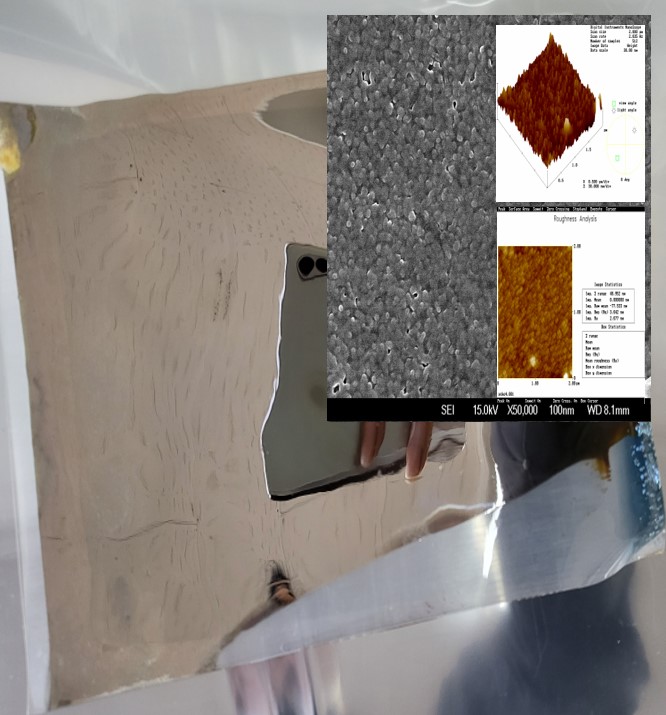

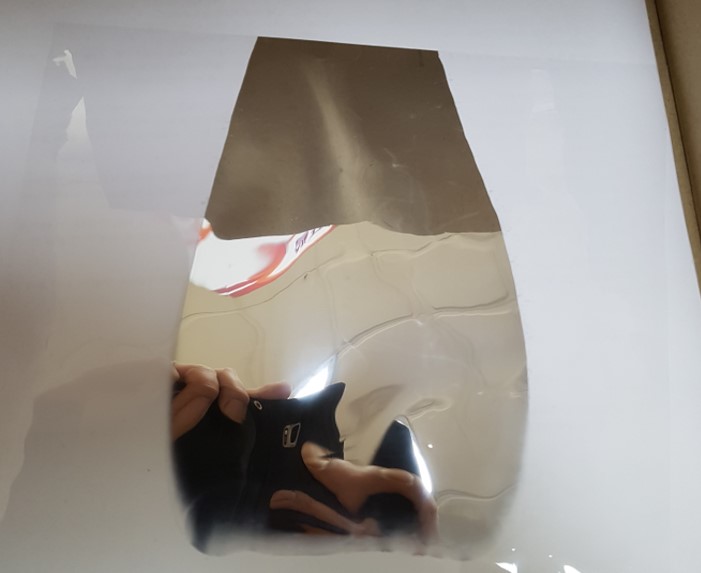

      The mirror film coated with metal solution VX
      on PET has excellent durability

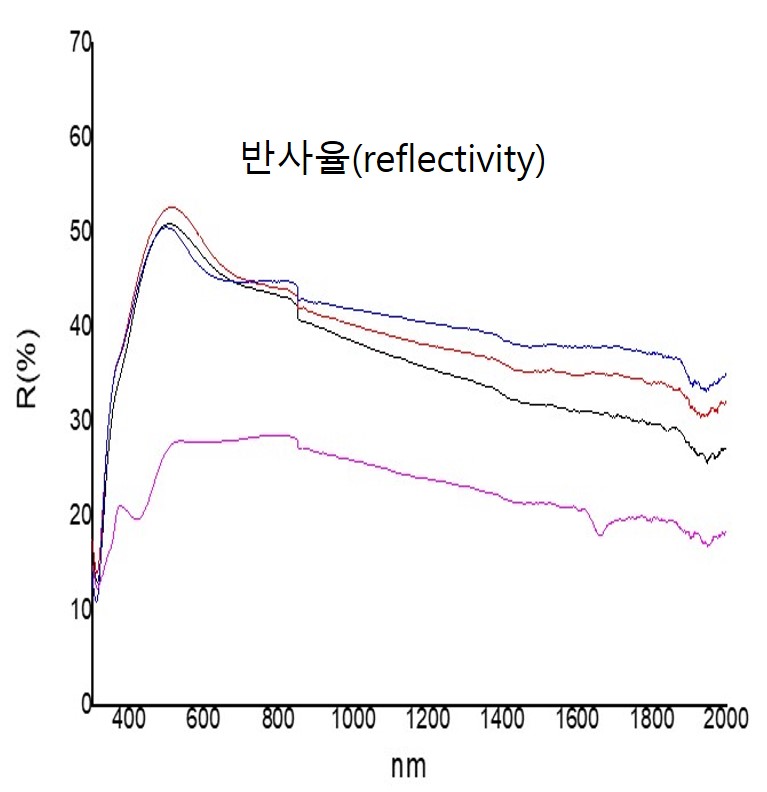

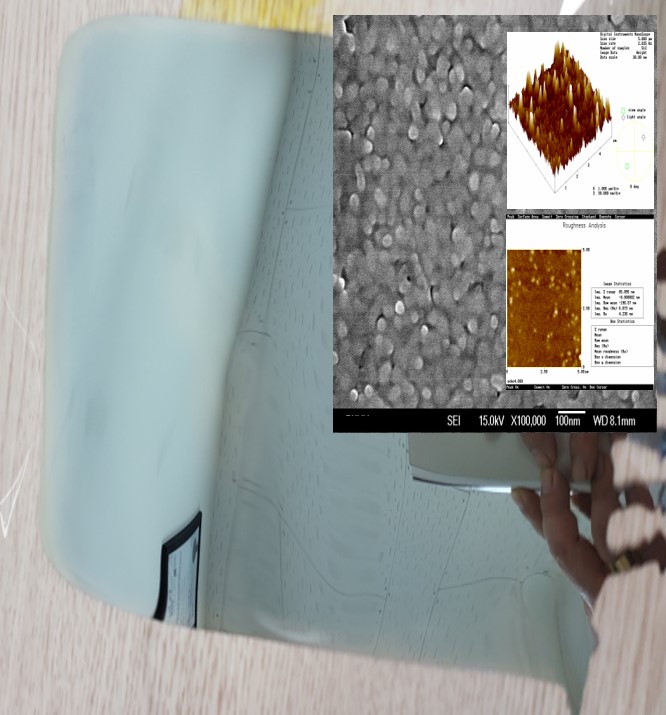

Analysis result

O-Metal Specification (metal solution)

Appearance Clear
Particle size -
Solid contents 1.54~6.4 wt.%
Viscosity 10~20 cps
Base solvent Alcohol or solvent
Customization possible after ordering consultation

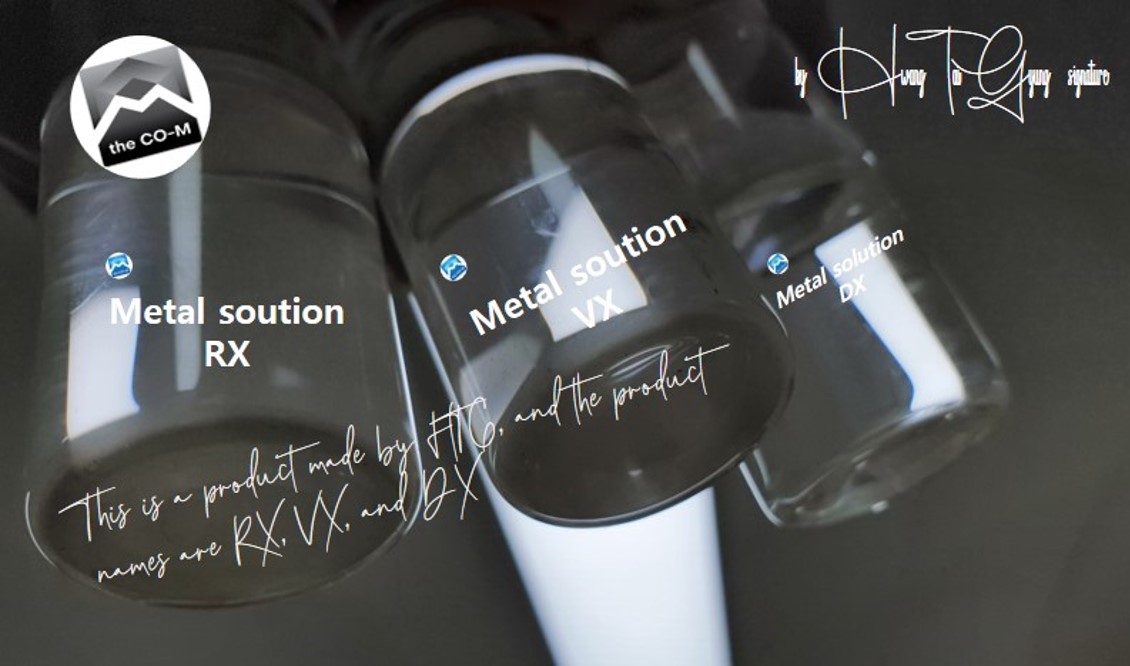

O-Metal coating sol (RX, VX, CX) products are available to order
